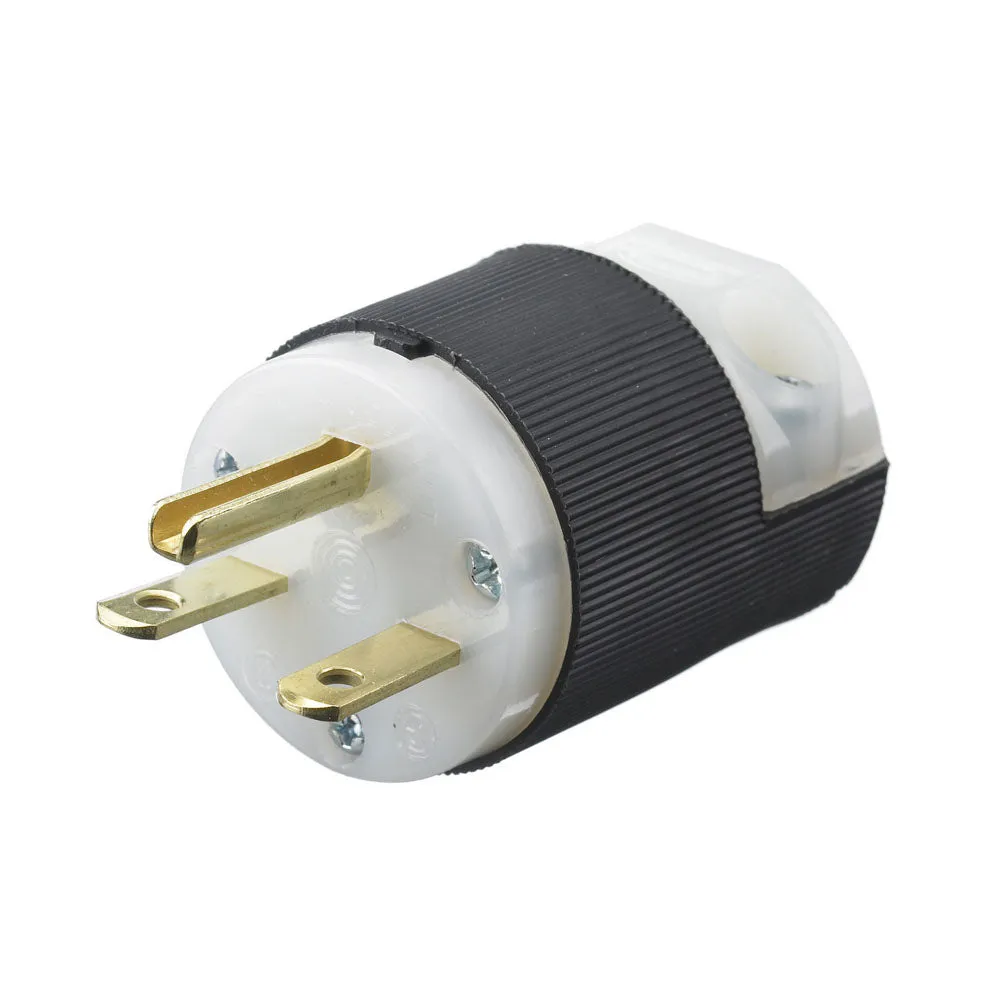

This 6-15P power cord connector is a 2-pole 3-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
| Physical Characteristics | |
|---|---|
| No. of Poles | 2-Pole |
| No. Of Conductor | 3 Conductor |
| Connectivity | Screw Terminals |
| Material | Polycarbonate |
| Operating Temperature | Maximum continuous 75℃ and Minimum -40℃ without Impact |
| Cable Diameter Range | 0.230 - 0.720 inch |
| Wire Gauge Compatibility | 10-18AWG |
| Power Rating | 15A 125V |
| Phase | Single Phase |
| Manufacturing Information | |
| Hubbel Part No. | HBL5666C |
| Connectors | |
| 6-15P | Male |
| Approvals | |
| UL | Yes |
| CSA | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.15 lbs [0.06kg] |
